| Brand Name : | Teswell |
| Model Number : | JW-MR-HD1231-GW045-A05 |
| Certification : | CE;FCC;ROSH |
| Price : | negotiation |
| Delivery Time : | 3-7days after payment |
| Payment Terms : | T/T;Western Union |
| Supply Ability : | 20000/month |
Description：JW-MR-HD1231-GW045-A05 ；
12*960H(960*576) or 12*D1(704*576);
Support 2.5 inch 2TB(MAX) HDD;
8CH alarm input;
GPS,3G,4G,WIFI optional.
Function
12 channel video/audio input, 12*960H(960*576)or 12*D1(704*576)adjustable
H.264 video compression, Linux operation system, dual streaming
Supports pentaplex operation: preview, record, playback, backup, network transmission.
Hard disk auto-heating
Max 2TB 2.5 inch HDD
Internal 3G, 4G, WIFI and GPS module optional
Motion detection & alarm pre-recording
Supports time-lapse recording after the car is powered off
Supports recording and displaying the license plate number
Supports HDD overwritten by days
Supports PTZ control via built-in RS-485 port
Supports backup and upgrade with USB flash disk & USB hard disk
Stable aluminum alloy structure with shock absorber
Self recovery after power reconnected
Other interfaces such as RS485, RS232, RJ45 etc
DC 8V to 36V wide range voltage power supply, embedded design in industrial
Operating temperature -20℃~+85℃
Specifications
Items | Device parameters | Performance index |
Name | Product Name | 12 Channel Mobile DVR(HDD Storage) |
System | Operation System | Linux |
Operation Interface | Graphical Interfaces, Chinese/English optional | |
File System | Proprietary Format | |
System Privileges | User Password | |
Video | Video Input | 12ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras |
Video Output | 1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω， Composite Video Signal | |
Video Display | 1 Or 12Screen Display | |
Video Standard | PAL:25frames/Sec;NTSC:30frames/Sec | |
System Resources | PAL:300 Frames; NTSC:360 Frames | |
Audio | Audio Input | 12 Channels Independent Input 600Ω |
Audio Output | 1 Channel(12 Channels Can Be Convert Freely) | |
Basic Output Level | 1.0—2.2V | |
Distortion Plus Noise | ≤-30dB | |
Recording Mode | Sound And Image Synchronization | |
Audio Compression | ADPCM | |
Digital Processing & Storage | Image Compression | H.264 Fixed Code Stream |
Image Format | 12*960H（960*576），12*D1（704*576） | |
Video Stream | 1.0M-6.0Mbit/s | |
Video Taking Up Of Hard Disk | 450M-2.6GByte/hour | |
Playback Resolution | 1or12*960H，1or12*D1 | |
Audio Bitrate | 4KByte / s / channel | |
Audio Taking Up Of Hard Disk | 14MByte / hour / channel | |
HDD Storage | Support Max 2TB | |
Image Quality | Eight Grades to Choose | |
Alarm | Alarm in | 8 Channels Independent Input. High Voltage Trigger |
Alarm out | 2 Channels Independent output | |
Move Detect | available | |
USB Interface | Host Access | Can Expand One For USB Disk Backup |
Network | Wire line Access | Can Expand One RJ45 Ethernet Port |
Wifi | Can Expand One Wifi Module Inside | |
3G | Can Expand One WCDMA or CDMA2000 Module Inside | |
GPS Interface | GPS | Can Expand GPS Module Inside |
Extend Interface | RS232 | Extensible,it is convenient to connect with other vehicle equipment |
RS485 | Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera | |
Intercom | Can Expand Intercom Module Inside | |
G-Sensor | Can Expand G-Sensor Module Inside | |
Canbus | Can Expand Canbus Module Inside | |
Others | Power Consumption | DC8-36V 5% ≤12W |
Working Temperature | -20℃ ~ +85℃ ≤80% | |
Clock | Built-In Clock, Calendar | |

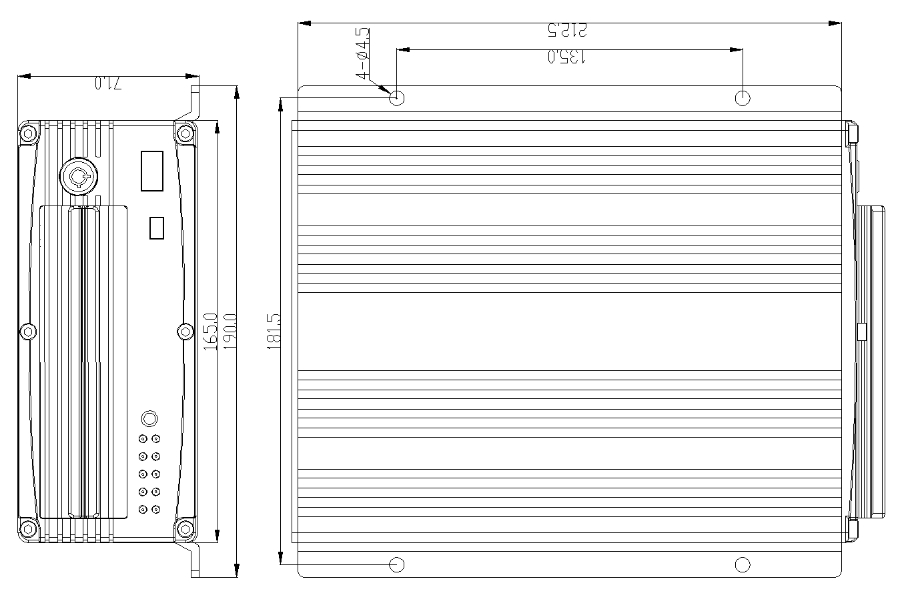

Packaging | Product Size | 245(L)*190(W)*71(H)mm（with Holder） |
Product Weight | 3.4KG(without HDD) | |
Package | Each In a Box, 5 set/Canton | |
Box Size | 245(L)*190(W)* 71(H)mm | |
Carton Size | 650(L)*375(W)* 255(H)mm | |
Carton Weight | 14kgs/ 18kgs (without HDD) |
Accessories
Warranty
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. One year warranty and life-time Service
|
|
