Functional 4CH SD Card Vehicle Mobile DVR
Description：
4CH SD Card Vehicle Mobile DVR
* 2D1+2CIF channel / 4HD1
* with GPS & 3G & WIFI (optional)
* 2 SD card (each 64GB MAX)
* 6CH alarm input, 2CH alarm output
* 2 RS485 interface, 1 RS232 interface
Function:
4 channel video/audio input, D1/HD1/CIF adjustable
H.264 video compression, Linux operation system, dual streaming
Two SD card slots(Max 64GB for each)
Digital watermark
Internal 3G, WIFI and GPS module optional
Motion detection
8 seconds power-off delay for data protection, in order to prevent data lost and file destroyed by instant power-off
Other interfaces such as RS485, RS232 etc
Peripheral device extension supported, e.g. Control panel, bus stops announcement
Black box for vehicles, recording speed, position, acceleration, temperature, brakes, backing up, turns, alarms and other important information.
DC 8V to 36V wide range voltage power supply, embedded design in industrial
Standard, aluminum metal shell, low power consumption
Operating temperature -25℃~+85℃
Reversing switch function
| Item | Parameter | Specification | |
| System | Language | English | |
| OSD | Graphic User Interface(OSD menu) | ||
| Password | User password/Administrator password | ||
| Video | Input | 4CH video input, 1.0Vp-p, 75Ω | |
| Output | 2CH video output, 1.0Vp-p, 75Ω | ||
| Preview | 1CH/4CH preview | ||
| Recording | PAL 25fps/NTSC 30fps | ||
| Image Compression | H.264 Main profile, 100fps | ||
| Audio | Input | 4CH | |
| Output | 1CH | ||
| Recording Mode | Audio/Video sync | ||
| Image Processing & Storage | Video format | D1/HD1/CIF | |
| Video Stream | ISO14496-10 | ||
| Video Bit Rate(kbps) | D1:2048 ~ 400kbps | ||
| HD1: 2048 ~ 380kbps | |||
| CIF: 1536 ~ 128kbps | |||
| 8 level settings, highest: level 1 | |||
| Audio Bit Rate | 8KB/s | ||
| Storage | 2 SD Cards; Max.64GB for each card | ||
| Alarm | Input | 6CH input | |
| Output | 2CH output, high level 12V output | ||
| Communication Port | RS485 Interface | 2 RS485 interface | |
| RS232 Interface | 1 RS232 interface | ||
| Wi-Fi Interface | 802.11b/g | ||
| Extended Interface | Control Panel | Connect to bus station reporter or control panel | |
| Audio Power amplifier | Support 2CH audio power amplifier output | ||
| Wireless | CDMA | Optional CDMA module | |
| GPRS/EDGE | Optional GPRS/EDGE module | ||
| 3G(HSDPA/EVDO) | Optional 3G(HSDPA/TD-SCDMA) module | ||
| GPS | Built-in GPS module, Geographical co-ordinates, driving speed can be read in coding flow, and uploaded via wireless(optional) | ||
| G-Sensor | Build-in G-Sensor | ||
| Software | L&V CMS L&V CS | Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless，Play back video on computer and analyze vehicle information from recording file | |
| Upgrade | Support SD Card upgrade | ||
| Weight | N.W. | 0.9kg | |
| G.W. | 2kg | ||
| Dimension | 180mm*138mm*47mm | ||

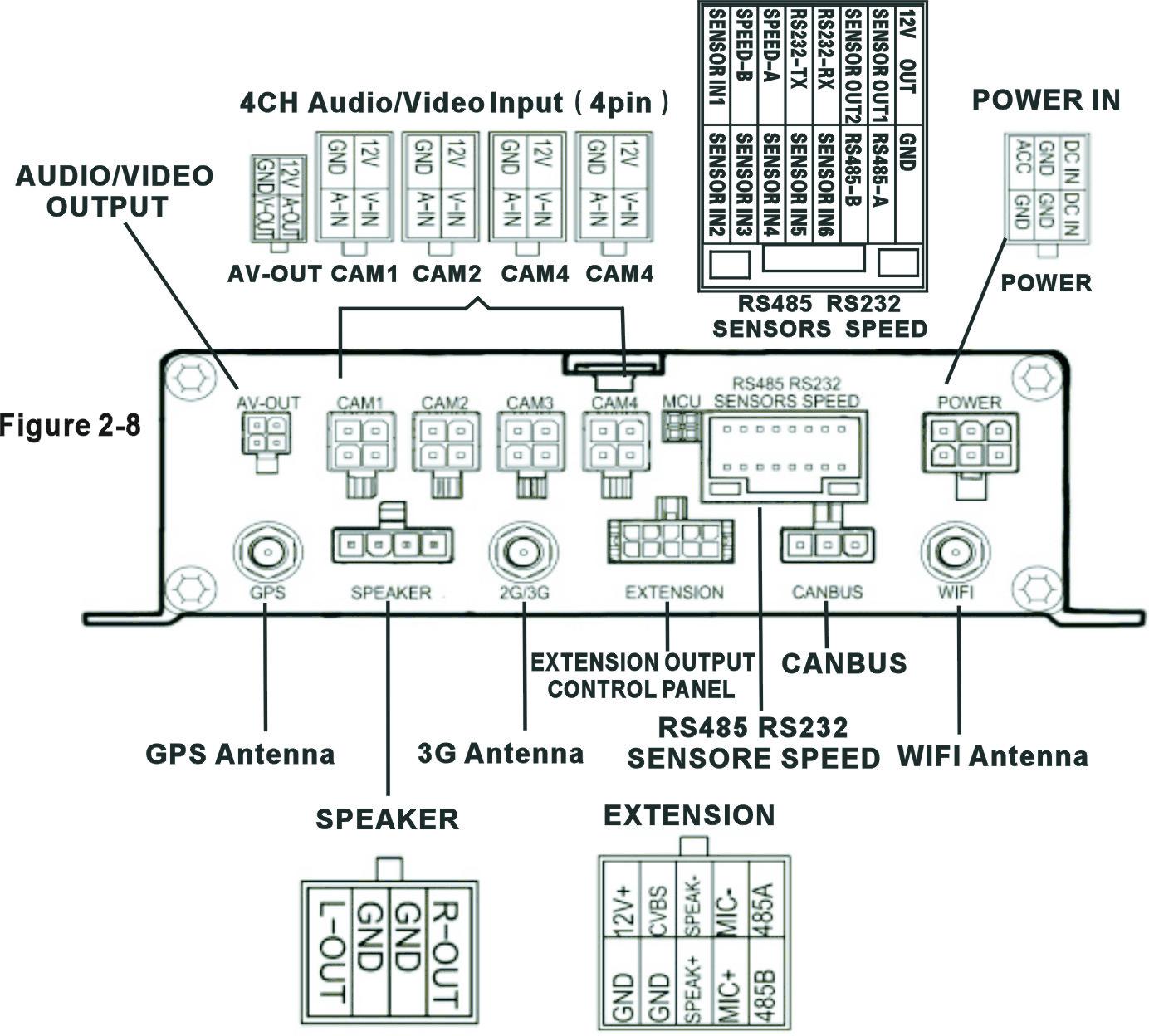

Drawing:
Accessories:
Why to choose Jasanwin this style Mobile DVR?
1.This Mobile DVR is designed for mass-market mobile monitoring
design a cost-effective
vehicle monitoring SD recorder.
2.Wide power input, SD card, USB, use a professional and reliable
air plug connector;
support the expansion WIFI, GPS, 3G module.
3.Appearance of small simple operation and easy installation, the
system is stable. Support
mobile phone monitoring.
4.Widely used in passenger cars, buses, taxis, school buses,
logistics vehicles, dangerous
goods vehicles, private cars, and ships.
5.Software is independent intellectual property rights with Chinese
government
department's operation test. 60000 devices can be stable managed by
it.
Communication with customers:
A: Hello, May you help me ?
B: What’s the different from JW-MR-HD0415-NN001-A14 and
JW-MR-HD0415-GW005
-A14?
A:Dear, We are Jasanwin Intelligent Technology Co., Ltd in China.
Pleasure to help
you.NN001 just the basic version for recording, But GW005 can use the 3G SIM card for
the data transmission and Realtime monitoring, plus the GPS can locate the vehicles
precisely that can be understanded easily to the work fields by you. Meanwhile, the series
support PTZ remote control, LED screen remote control, Talkback, Broadcast ..
B: Well ,we never had a problem with them before but we bought some from other
suppliers, hows that for quality control in your factory?
A: We have the FCC,ROHS and CE to inspection the Mobile DVRs and
the defective rate
is 0.2%.
B: How long time for 500pcs JW-GW005?
A: 4-8 Days is okay with laser Logo and Silk-print.
B: Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS and shipment by air or sea are okay.
Which shiping cost
is cheaper and speed is good, I will suggestion to you. 5-6 days
can arrive UK.
B: How long is your quality guarantee period
A: In usually, the DVR is 24 month.
B: Great, TKS. Do it.
Bus; school bus; long-distance bus; car; taxi; police car, truck;
metro; logistics vehicles; ambulance; tourist bus; boat; ect.
|
|
