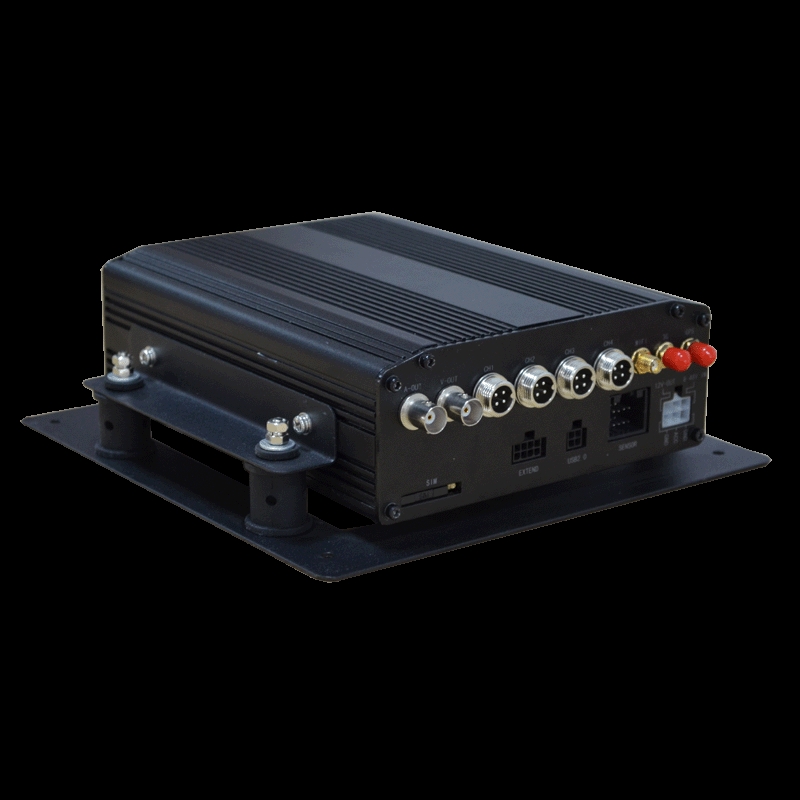

Description：
JW-MR-HD0415-GW010-A05
4ch video/audio input
4CH full D1/HD1/CIF optional
Max 2.5 inch 2TB HDD
GPS, 3G, WIFI module optional
Function:
4 channel video/audio input, D1/HD1/CIF adjustable
H.264 video compression, Linux operation system, dual streaming
Supports pentaplex operation: preview, record, playback, backup, network transmission.
Hard disk auto-heating
Max 2TB 2.5 inch HDD
Internal 3G, 4G, WIFI and GPS module optional
Motion detection & alarm pre-recording
Supports time-lapse recording after the car is powered off
Supports recording and displaying the license plate number
Supports HDD overwritten by days
Supports PTZ control via built-in RS-485 port
Supports backup and upgrade with USB flash disk & USB hard disk
Stable aluminum alloy structure with shock absorber
Self recovery after power reconnected
Other interfaces such as RS485, RS232, RJ45 etc
DC 8V to 36V wide range voltage power supply, embedded design in industrial
Operating temperature -20℃~+85℃
| Items | Device parameters | Performance index |
| Name | Product Name | 4 Channel Mobile DVR(HDD Storage) |
| System | Operation System | Linux |
| Operation Interface | Graphical Interfaces, Chinese/English optional | |
| File System | Proprietary Format | |
| System Privileges | User Password | |
| Video | Video Input | 4ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras |
| Video Output | 1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω， Composite Video Signal | |
| Video Display | 1 Or 4 Screen Display | |
| Video Standard | PAL:25frames/Sec;NTSC:30frames/Sec | |
| System Resources | PAL:100 Frames; NTSC:120 Frames | |
| Audio | Audio Input | Four Channels Independent Input 600Ω |
| Audio Output | 1 Channel(4 Channels Can Be Convert Freely) | |
| Basic Output Level | 1.0—2.2V | |
| Distortion Plus Noise | ≤-30dB | |
| Recording Mode | Sound And Image Synchronization | |
| Audio Compression | ADPCM | |
| Digital Processing & Storage | Image Compression | H.264 Fixed Code Stream |
| Image Format | PAL:4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) NTSC:4*CIF (352*240), or 4*HD1(704*240), or 4*D1(704*480) | |
| Video Stream | CIF: 24K-112KByte/s; HD1 & D1: 24K-192KByte/s; | |
| Video Taking Up Of Hard Disk | CIF: 85M-394MByte / hour / channel HD1 & D1: 85M-675MByte / hour / channel | |
| Playback Resolution | PAL:1 or 4*CIF (352*288); 1 or 4*HD1(704*288); 1 or 4*D1(704*576) NTSC:1 or 4*CIF (352*240); 1 or 4*HD1(704*240); 1 or 4*D1(704*480) | |
| Audio Bitrate | 4KByte / s / channel | |
| Audio Taking Up Of Hard Disk | 14MByte / hour / channel | |
| HDD Storage | Support Max 1TB | |
| Image Quality | Eight Grades to Choose | |
| Alarm | Alarm in | 4 Channels Independent Input. High Voltage Trigger |
| Alarm out | 1 Channels Independent output | |
| Move Detect | avaliable | |
| USB Interface | Host Access | Can Expand One For USB Disk Backup |
| Network Interface | Wire line Access | Can Expand One RJ45 Ethernet Port |
| Wifi | Can Expand One Wifi Module Outside, 802.11 A/B/G/N | |
| 3G | Can Expand One WCDMA or CDMA2000 Module Inside | |
| GPS Interface | GPS | Can Expand GPS Module Inside |
| Extend Interface | RS232 | Extensible,it is convenient to connect with other vehicle equipment |
| RS485 | Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera | |
| Intercom | Can Expand Intercom Module Inside | |
| G-Sensor | Can Expand G-Sensor Module Inside | |
| Canbus | Can Expand Canbus Module Inside | |
| Others | Power Consumption | DC8-36V 5% 8W（without HDD） |
| Working Temperature | -20℃ ~ +85℃ | |
| Clock | Built-In Clock, Calendar | |
| Packaging | Product Size | 212L)*210(W)*68(H)mm（with Holder） |
| Product Weight | 1.9KG(without HDD) | |
| Package | Each In a Box, 10set/Canton | |
| Box Size | 295(L)*240(W)* 100(H)mm | |
| Carton Size | 505(L)*310(W)* 500(H)mm | |
| Carton Weight | 19kgs/22kgs (without HDD) |
Drawing:
Accessories:
Why to choose Jasanwin this style Mobile DVR?
1.This Mobile DVR is designed for mass-market mobile monitoring
design a cost-effective vehicle monitoring SD recorder.
2.Wide power input, SD card, USB, use a professional and reliable
air plug connector; support the expansion WIFI, GPS, 3G module.
3.Appearance of small simple operation and easy installation, the
system is stable. Support mobile phone monitoring.
4.Widely used in passenger cars, buses, taxis, school buses,
logistics vehicles, dangerous goods vehicles, private cars, and
ships.
5.Software is independent intellectual property rights with Chinese
government department's operation test. 60000 devices can be stable
managed by it.
Communication with customers:
A: Hello, May you help me ?
B: What’s the different from JW-MR-HD0415-NN001-A14 and JW-MR-HD0415-GW005-A14?
A:Dear, We are Jasanwin Intelligent Technology Co., Ltd in China.
Pleasure to help you.NN001 just the basic version for recording,
ButGW005can use the 3G SIM card for the data transmission and Realtime
monitoring, plus the GPS can locate the vehicles precisely that can
be understanded easily to the workfields by you. Meanwhile, the series support PTZ remote control,
LED screen remote control, Talkback,Broadcast ..
B: Well ,we never had a problem with them before but we bought some
from other suppliers, hows that for quality control in your
factory?
A: We have the FCC,ROHS and CE to inspection the Mobile DVRs and
the defective rate is 0.2%.
B: How long time for 500pcs JW-GW005?
A: 4-8 Days is okay with laser Logo and Silk-print.
B: Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS and shipment by air or sea are okay.
Which shiping cost is cheaper and speed is good, I will suggestion
to you. 5-6 days can arrive UK.
B: How long is your quality guarantee period
A: In usually, the DVR is 24 month.
B: Great, TKS. Do it.
|
|
